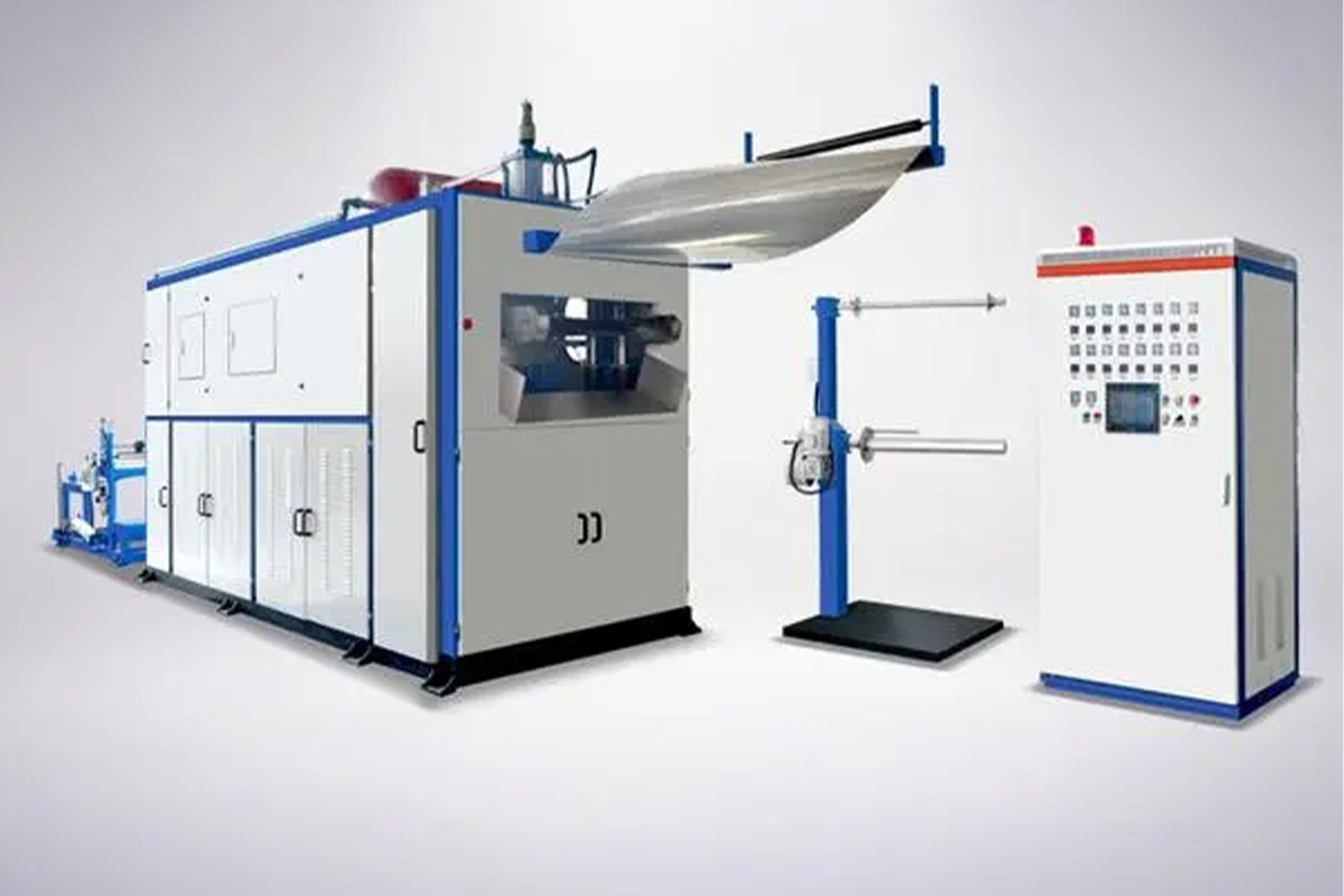

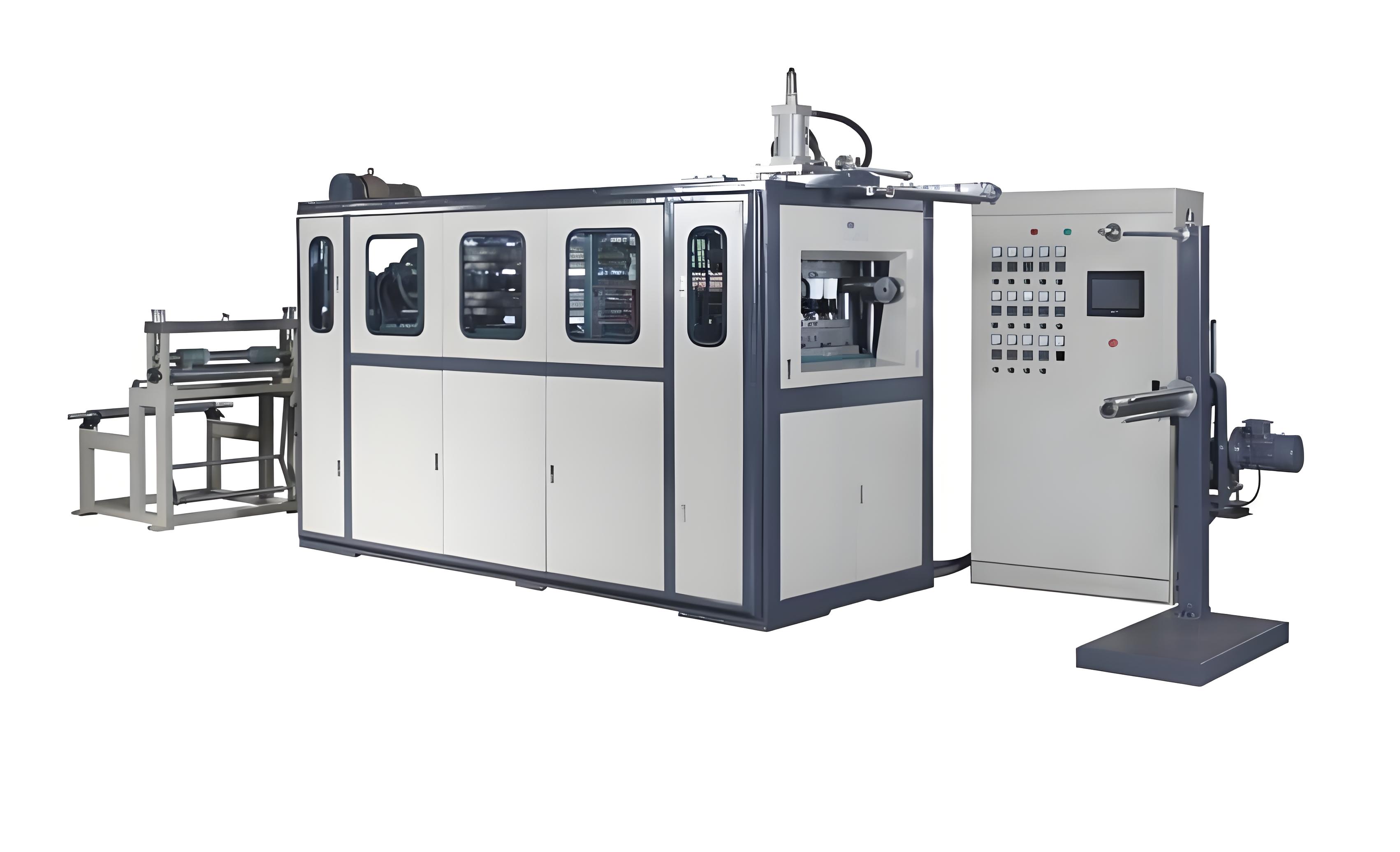

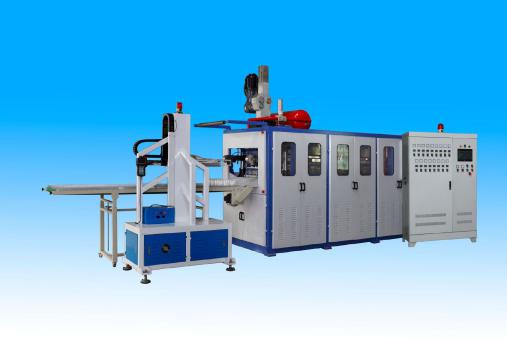

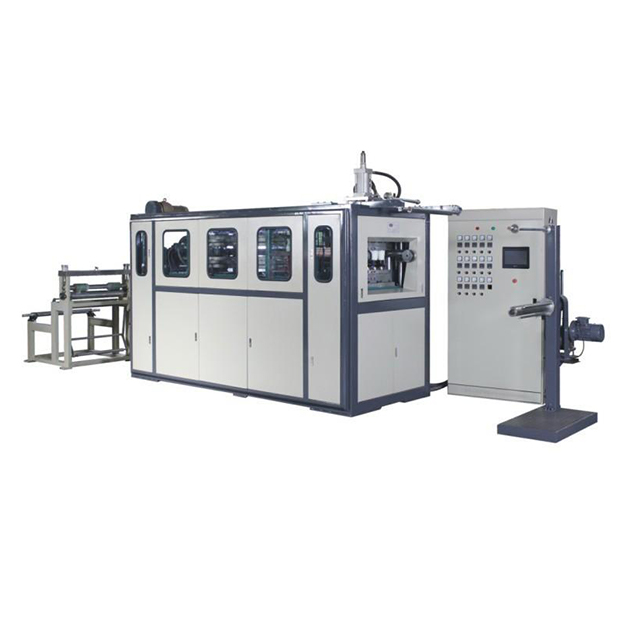

Cup Making Machine

Product Description

Machine Advantages

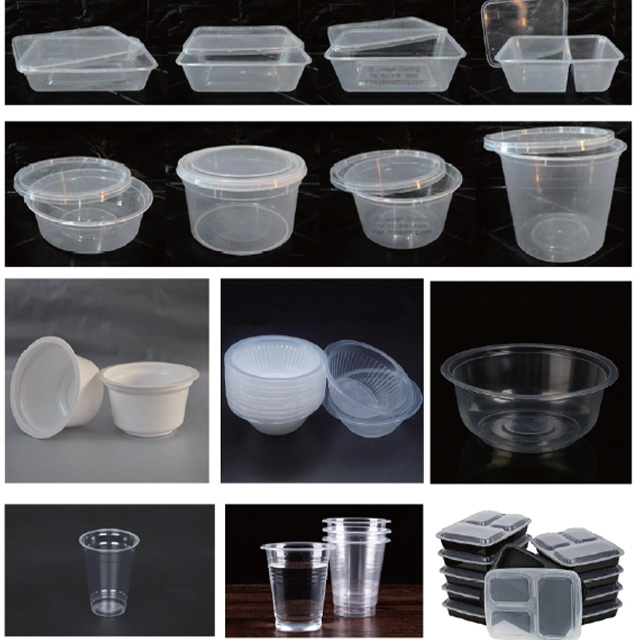

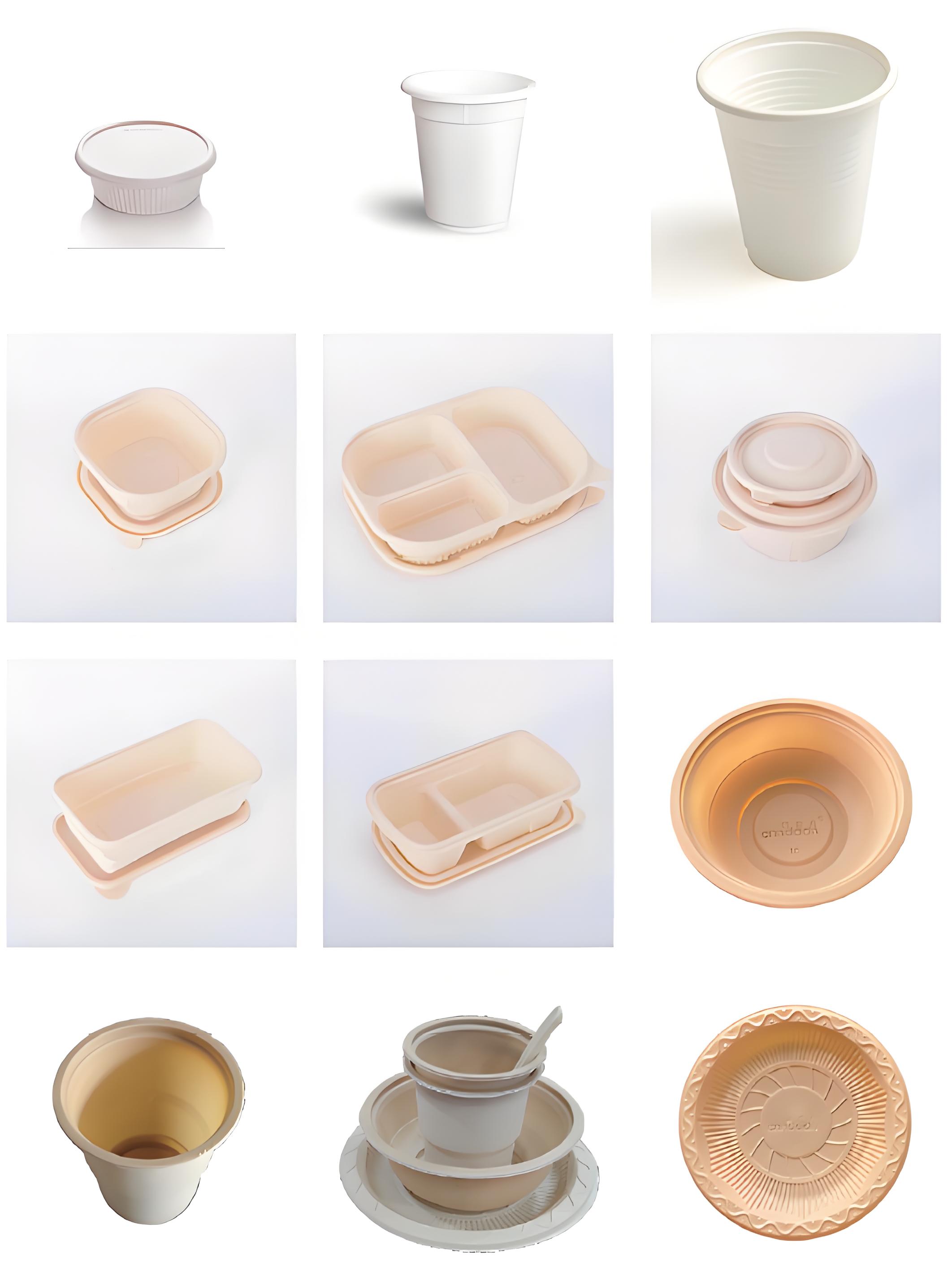

1. Muti Application:Disposable Cups, Glasses, Jelly Cups, Food Container, Lid, Food Bowl, Food Plate, Food Tray, Market Tray etc

2. Fully machine in compact structure,taking small floor space;

3. Can be adapted to a variety of materials:PP、PS、PET、PVC、PLA, With calcium, rice husk, bamboo, talcium, starch, straw, bamboo and other plant fiber

4. Furnaces automatic removal device,can be turned down at any time during production without breaking the sheet reaching without wasting materials;

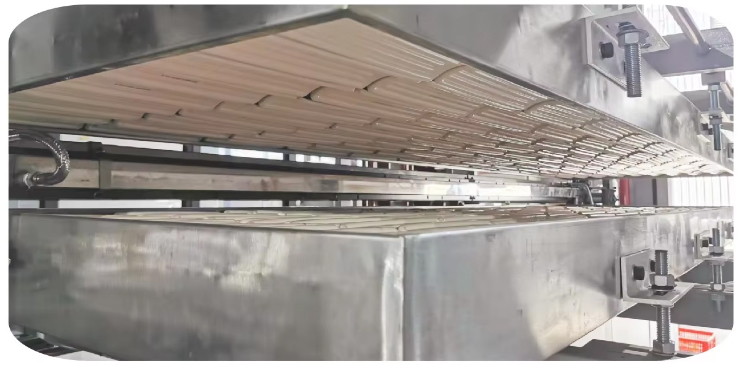

5. Electric furnace temperature control system uses intelligent automatic compensation control, a control, a

control of a regulator, easy to adjust the temperature uniformity, easy to use, simple, fast heating, low temperature three times up and down the oven roast slices.

6. Labor saving,only 1-2 workers packing

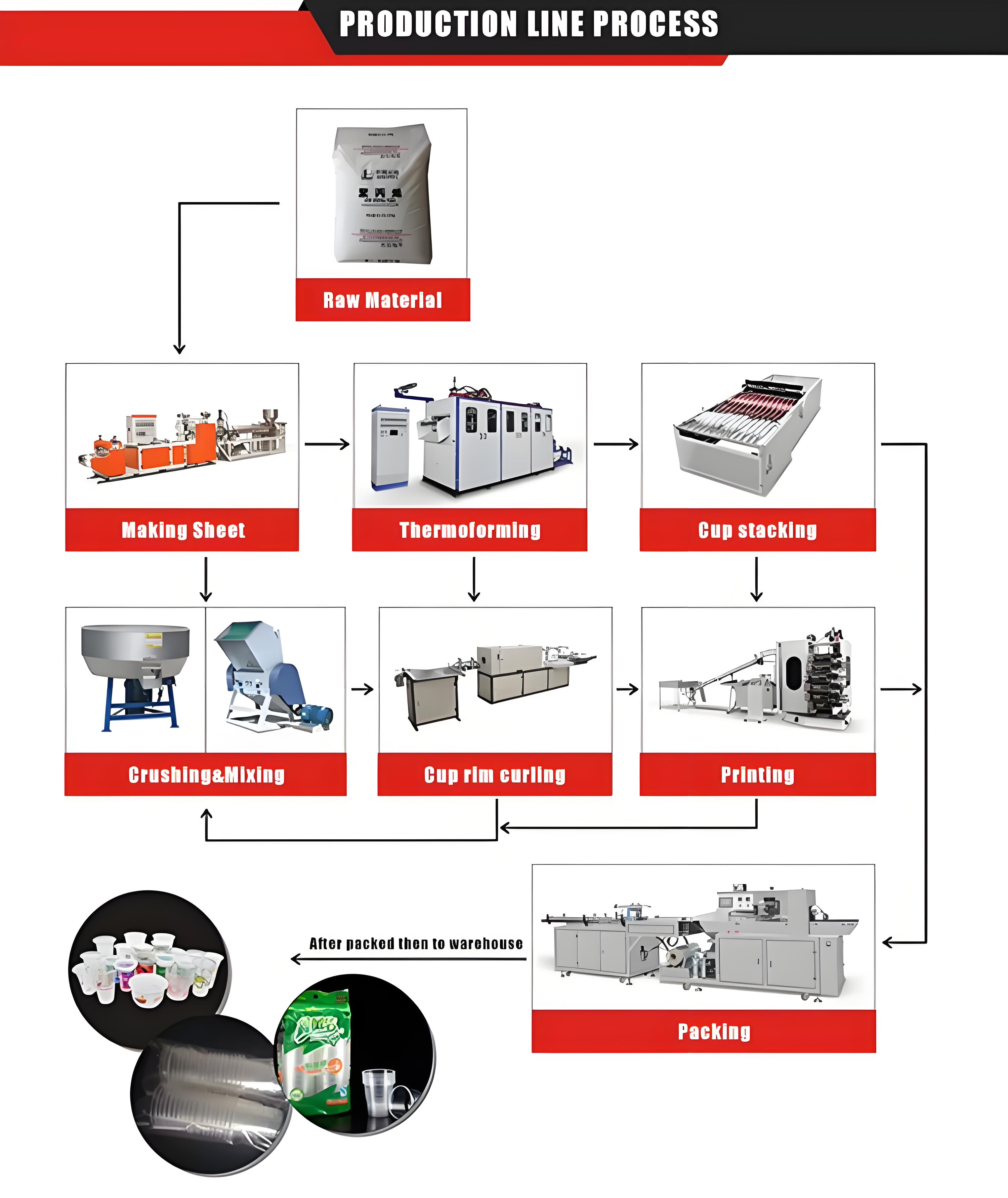

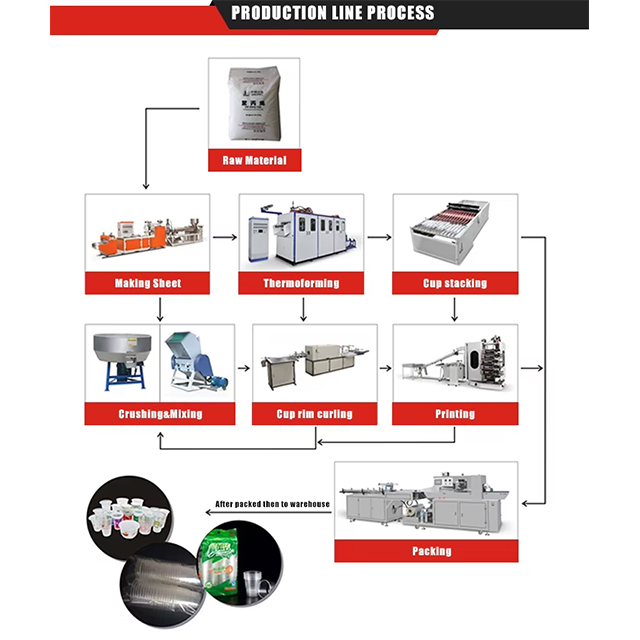

Production Process

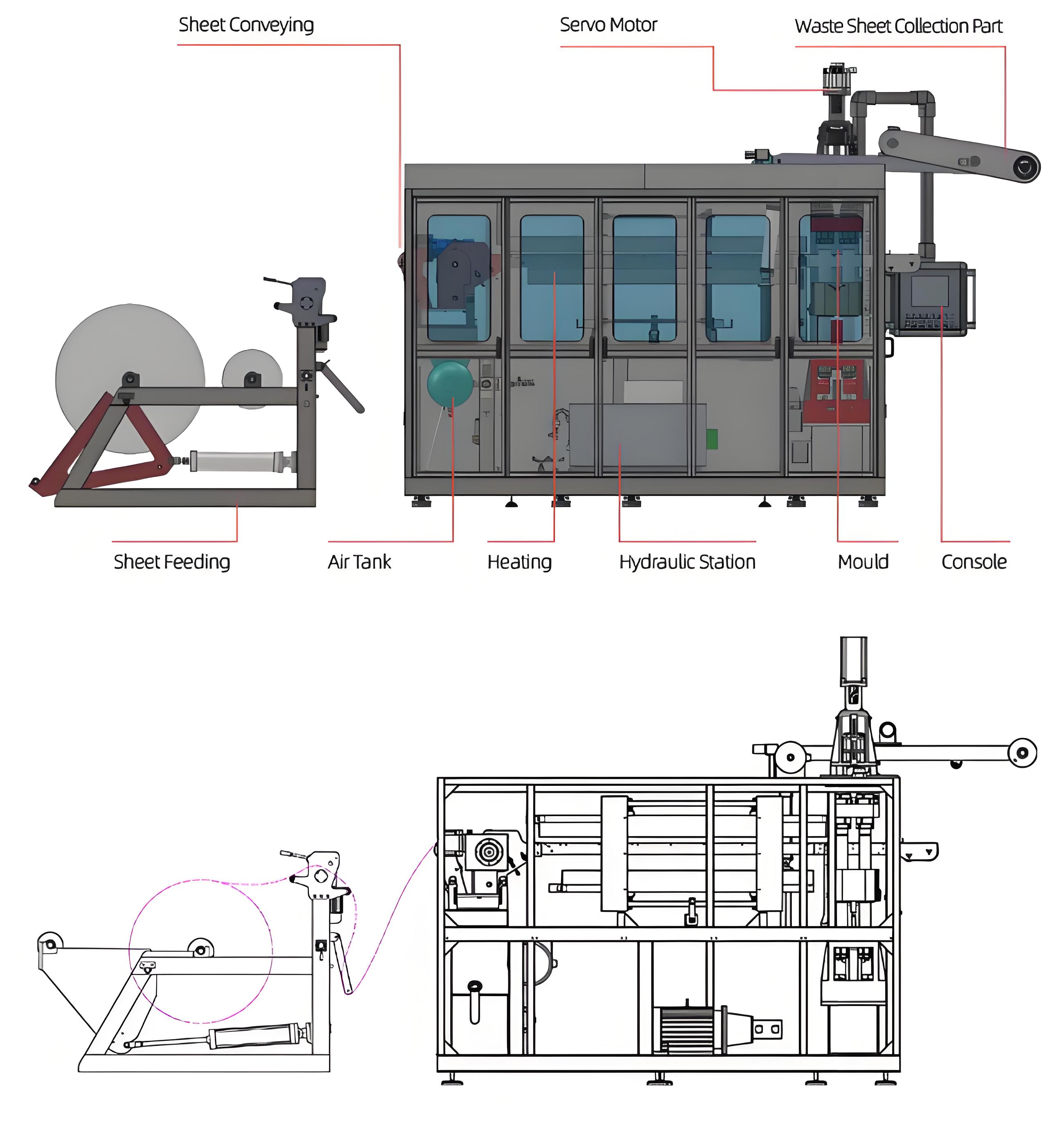

Machine Structure Drawing

Machine Specification

Machine Type	BC-660	BC-800D
Maximum Mould Size	660*420mm	850*530mm
Maxumum Forming Depth	150mm	180mm
Sheet Thickness Range	0.3-2.0mm	0.3-2.0mm
Maxumum Forming Speed	≤30times/min	≤35times/min
Main Drive	11 KW Motor	15KW Servo Motor
Sheet Feeding Drive	3.7 KW Servo Motor	3.7 KW Servo Motor
Forming Drive	Air Cylinder	7.5KW Servo Motor
Power Supply	380V3P50Hz	380V3P50Hz
Air Pressure	0.6-0.8mpa	0.6-0.8mpa
Air Consumption	2.0m3/min	2.0m3/min
Water Consumption	≤45L/min	≤50L/min
Rated Power	130kw	150kw
Actual Power	50-55kwh	60-65kwh
Machine Dimensions	500015002200mm	500022002600mm
Total Weight:	5.5Ton	7.5 Ton
Applicable Sheet Type	PP、PS、PET、PVC、PLA, With calcium, rice husk, bamboo, talcium, starch, straw, bamboo and other plant fiber

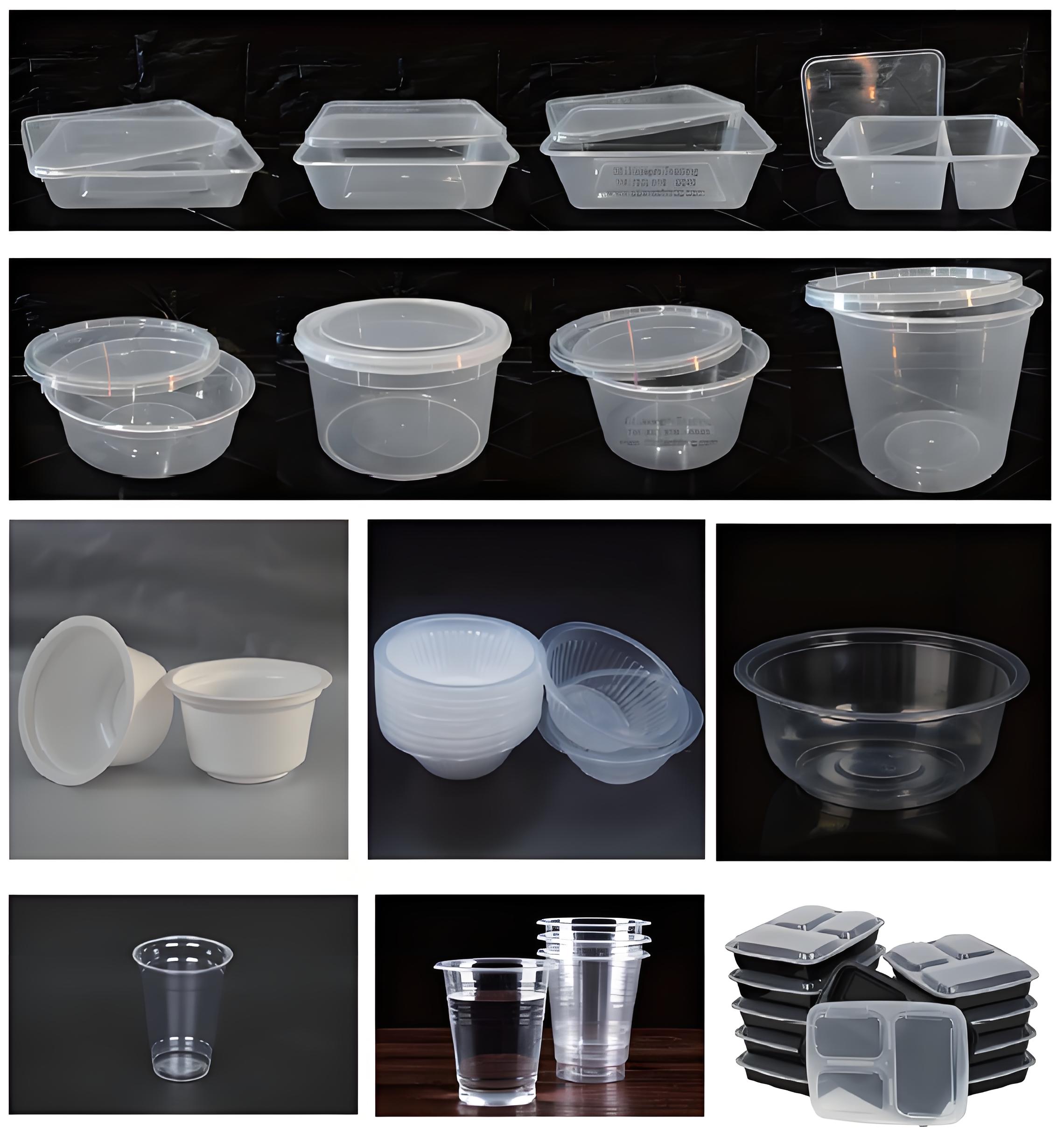

Application	Disposable Cups, Glasses, Jelly Cups, Food Container, Lid, Food Bowl, Food Plate, Food Tray, Market Tray etc
